Bidirectional Transceivers

Double Network Bandwith for Half the Cost

Approved Networks' bi-directional (BiDi) transceivers are designed to optimize optical networking by enabling simultaneous data transmission in both directions over a single strand of single-mode fiber (SMF). This advanced technology leverages wavelength division multiplexing (WDM) to double the bandwidth while significantly reducing fiber infrastructure costs.

Features and Benefits

• Double Network Capacity: Unlock the full potential of your existing infrastructure, doubling bandwidth through simultaneous data transmission and reception.
• Cost Savings: Reduce your infrastructure investment while maintaining high-performance, long-distance connectivity. Bi-directional transceivers enable additional capacity with no additional fiber installations.
• Scalable Solutions: Our portfolio supports data rates from 1G to 100G, enabling next-generation optical networking without the delay of deploying additional fiber.
• Broad Temperature Tolerance: Operates effectively in extremely high or ultra-low temperatures, ensuring reliability in diverse environments such as industrial and outdoor deployments.

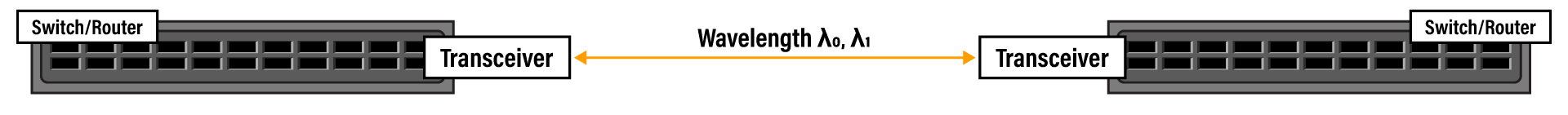

Transmission Diagram

Specifications

• Data Rates: 1G, 10G, 25G, and 100G
• Fiber Type: Single-mode fiber (SMF)
• Wavelengths: Utilizes WDM technology for bidirectional communication
• Temperature Range: -40°C to 85°C (Suitable for all temperatures. C-TEMP: 0 to +70℃, E-Temp: -20℃ to +85℃, I-Temp: -40℃ to +85℃)
• Applications: Broadband, wireless front-haul/backhaul, metro networks, university, hospital, and other multi-building campus networks
