Maximize Efficiency with High-Speed
Active Electrical Cables

Extend high-speed copper connectivity with AEC solutions that deliver improved reach,
lower power consumption, and cost-effective scalabilit


Talk to an Expert

Active Electrical Cables

Approved’s Active Electrical Cables (AECs) provide affordable 400G QSFP-DD and OSFP interconnections for data center and Internet Service Provider (ISP) applications. AECs offer significantly improved signal efficiency for next generation networks where bandwidth demands and functionality have outgrown their cable counterparts.

Approved AECs are ideal for Network Interface Card (NIC) to Top-of-Rack (ToR) and Direct Digital Control (DDC) applications extending distance and enabling speed-shift and breakout solutions not possible in other cable types.

Why Choose Active Electrical Cables?

AECs carry 400G Ethernet signals up to 7m over copper with integrated Clock and Data Re-timer (CDR) technology to provide improvements in reach, performance, and cable thickness. These cables consume 75% less power than optics with more than 50% savings. AECs sustain 8 lanes of 56G-PAM4 signal in each direction, providing bi-directional 400G traffic per cable and are ideal solutions for straight connections between racks or ports in the data center switch and router environment. They are currently available in QSFP-DD and OSFP form factors.

Why Choose Active Electrical Cables Breakout?

AEC Breakouts carry Ethernet signals up to 5m over thin copper through inline mode-shifting, speed-shifting and FEC termination. The 400G cable breaks out from one 400G (8x56G-PAM4) OSFP or QSFP-DD end into four 100G (4x28G-NRZ) QSFP28 ends with a built-in gearbox feature, enabling the connection of new PAM4 ports to existing in-rack NRZ gear. This makes it simple and affordable to connect top-of-rack 400G ports to today’s most common switches, servers, and storage. This solution is not possible in other cable types.

Active Electrical Cable Benefits

Reduced Cable Volume

Up to 75% smaller than traditional cables

Increased Reliability

Enhances signal quality and stability

Tighter Radius

Saves space and time making deployment simple and quick

Improved Signal Quality

Signal-boosting components enhance stability and integrity across longer distances

Product Offerings

Discover AECs engineered for high-speed, low-power connectivity in next-generation data center environments. These solutions deliver improved signal integrity, extended reach, and cost-efficient scalability for high-density networking.

Active Electrical Cable

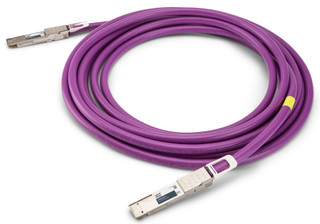

400GBASE QSFP-DD AEC Cable (QSFP-DD to QSFP-DD), CMIS4.0 - LP SPAN

Active Electrical Cable

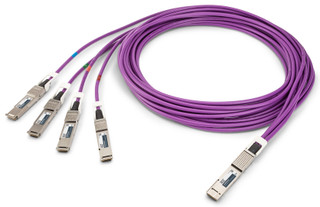

400GBASE QSFP-DD AEC Cable (QSFP-DD to 4 x QSFP28) Breakout, CMIS3.0 - SHIFT

Active Electrical Cable

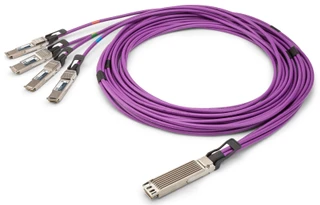

400GBASE OSFP AEC Cable (OSFP to 4 x QSFP28) Breakout, CMIS3.0 - SHIFT

No Cost Evaluations

Approved takes pride in providing reliable, high-quality solutions for optical connectivity. Our evaluation program allows Approved Networks to loan your organization our products for testing and evaluation purposes for 60 days.
