For pricing, call your Approved Networks sales partner, or Request a Quote from us.

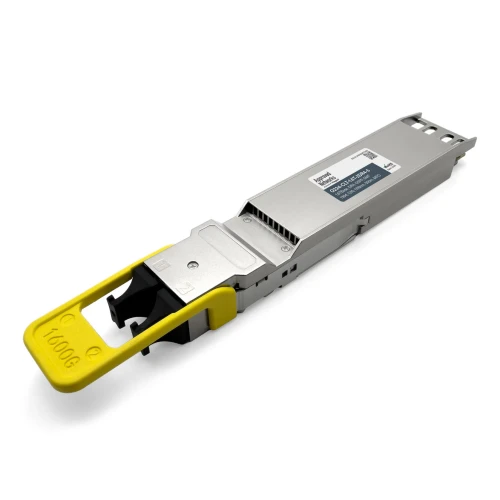

1.6T OSFP Closed Finned Top Integrated HeatSink (IHS) 2x DR4 (2x 800G), SMF 500m Dual MPO-12 APC

1.6T OSFP 2x DR4 with Closed Finned Top Integrated Heatsink

SKU:
O224-CLT-1.6T-2DR4-5

Product Description

100% OEM Compatible 1.6T OSFP Closed Finned Top Integrated HeatSink (IHS) 2x DR4 (2x 800G), SMF 500m Dual MPO-12 APC

OSFPDual MPO-12 to APCSinglemode Fiber1600GB/sCommercial temperature 0C to 70CMax 500m MSA Compliant



Specifications

Form Factor: OSFP with Closed Finned Top Integrated Heatsink Data Rate: 1600 Gb/s (2x 800 Gb/s)
Wavelength: 1304nm, 1310nm, 1318nm Protocols: InfiniBand NDR and Ethernet
Connector: Dual MPO-12 APC Transmitter Type: Sipho-based
Cable Type: Singlemode Fiber TX Power (Outer OMA): min. -3.3, max. 4 dBm
Max Distance: 500 m (1640 ft) RX Sensitivity (Outer OMA): -3.4 dBm
Temperature Range: Commercial Temp: 0ºC to 70ºC Digital Diagnostics (DDM/DOM): Supported
Power Consumption: Max. 26 W Application: AI and 1600G Ethernet



Tested. Trusted. Approved.

Guaranteed Compatible

Guaranteed Compatible

100% guaranteed compatible in over 90 OEM platforms

99.98% Reliability Rate

99.98%
Reliability Rate

100% tested to exact MSA & OEM specifications

Industry Leading Lifetime Warranty

Industry Leading Lifetime Warranty

Industry leading Limited Lifetime Warranty on all transceiver products

98% On-Time Delivery Rate

98% On-Time Delivery Rate

Extensive inventory guarantees immediate delivery on over 20,000 SKU's

Full Service Technical Support

Full Service Technical Support

Call, chat, email or meet for transceiver support

Up to 90% Savings

Savings of up to 90% off OEM Prices

Save up to 90% while improving deliverability & interoperability

Approved's OSFP with Closed Finned Top Integrated Heatsink OEM Compatibility

The Approved Networks 1.6T OSFP 2x DR4 with Closed Finned Top Integrated Heatsink is guaranteed 100% Compatible and Functional in its intended router or switch. Our OSFP with Closed Finned Top Integrated Heatsink transceiver comes with an Industry Leading Lifetime Warranty, surpassing the OEM warranty for the same product. Every OSFP with Closed Finned Top Integrated Heatsink transceiver is environmentally tested in its specific port/platform, which includes compliance verification for distance, wavelength, traffic density and light.

  • MSA: AN-O224-CLT-1.6T-2DR4-5
  • Nvidia: MMS4A00-A

If you don't see your platform listed, please contact us.
