Product Description

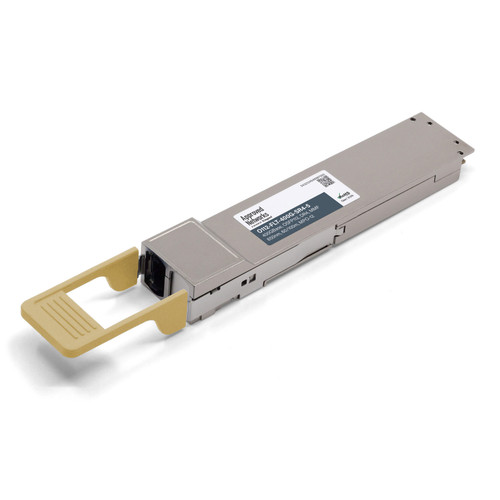

100% OEM Compatible 400GBase-SR4 OSFP112 Flat Top Transceiver (Parallel MMF, 850nm, 60m OM3, 100m OM4, MPO-12 APC, DDM, C-Temp, CMIS 5.2)
Specifications
| Form Factor: OSFP112 | Protocols: InfiniBand NDR and Ethernet |
| Wavelength: 850 nm | Transmitter Type: VCSEL array |
| Connector: MPO-12 APC | TX Power: min. -2.6 max. +3.5 dBm |
| Cable Type: Parallel Multimode Fiber | RX Sensitivity: '-4.6 dBm |
| Max Distance: Up to 60m over OM3 | 100m over OM4 | Digital Diagnostics (DDM/DOM): Supported |
| Temperature Range: Commercial Temp: 0°C to 70°C | Power Budget: 2.0 dB |
| Power Consumption: Max 8.5 W | Fiber Count: 8 |
| Data Rate: Up to 425 Gb/s | Number of Channels: 4 |
| Application: InfiniBand NDR and 400G Ethernet | Is it OnePort Programmable? No |
Tested. Trusted. Approved.
Guaranteed Compatible
100% guaranteed compatible in over 90 OEM platforms
99.98%
Reliability Rate
100% tested to exact MSA & OEM specifications
Industry Leading Lifetime Warranty
Industry leading Limited Lifetime Warranty on all transceiver products
98% On-Time Delivery Rate
Extensive inventory guarantees immediate delivery on over 20,000 SKU's
Savings of up to 90% off OEM Prices
Save up to 90% while improving deliverability & interoperability
